Removing and installing mirror adjustment motor - AR88.70-P-9060GH

MODEL 163

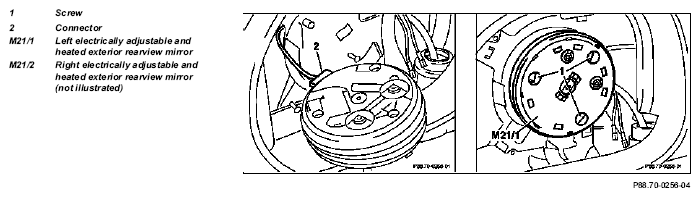

Fig 1: Identifying Mirror Adjustment Motor, Connector & Screw

	Removal, installation
1	Remove covering on outside rearview mirror	Remove mirror housing covering only.	AR88.70-P-9040GH
2	Unscrew screw (1)
3	Disconnect connector (2) and remove mirror adjustment motor (M21/1 or M21/2)
4	Install in opposite order
