Remove/install rear bumper - AR88.20-P-2200GI

MODEL 163.113 #A up to 289564,

163.113 #X up to 754619,

163.154 #A up to 289564,

163.154 #X up to 716524,

163.136 /172 with CODE (849) Spare wheel carrier/spare wheel

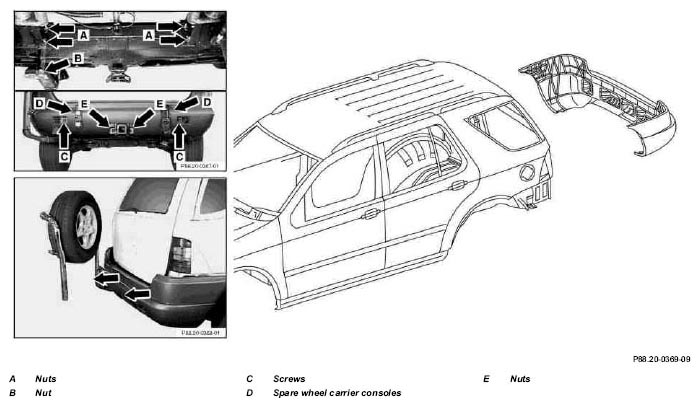

Fig 1: Identifying Rear Bumper & Fasteners

	Remove/Install
1.1	Disconnect antenna connector of E-call emergency call system	Only with emergency call system E-Call, code 349. Connector is located behind side flap of right C-pillar paneling at jack mounting point.
2	Unscrew nuts (A)	On vehicle underbody behind cross member
3	Unscrew nut (B)	On vehicle underbody behind cross member
4	Unscrew bolts from spare wheel carrier console	Do not damage bolt thread Bolts fastened with nuts (A) can be driven out from the rear of the cross member.
5	Remove spare wheel carrier consoles (D)
6	Remove 3 panels from bumper	Do not damage paint. Do not break off clips. Long wedge	Figure
7	Unscrew bolts (C) from bumper		*BA88.20-P-1007-01B
8	Unscrew nuts (E) from bumper		*BA88.20-P-1006-01B
9.1	Remove nut from rear mud guard	Only if present	*BA88.30-P-1004-01A
10	Remove bumper	Do not damage paintwork on vehicle and bumper. Completely turn spare wheel carrier to rear (maximum clearance for bumper). Pull bumper to rear and then lift out upward between spare wheel carrier and vehicle. Installation:  Align bumper at tailgate and at taillamps
11.1	Remove rubber seal for E-call emergency call system antenna from body at right	Only with emergency call system E-Call, code 349.
12	Install in the reverse order

Bumper

Detachable body components, underride guard

Fig 2: Identifying Long Wedge (115 589 03 59 00)
