Remove/install mirror glass - AR88.70-P-9020GI

MODEL 163.113 /154 /174 #A as of 289565, 163.113 /154 /174 #X as of 754620, 163.128/157/175

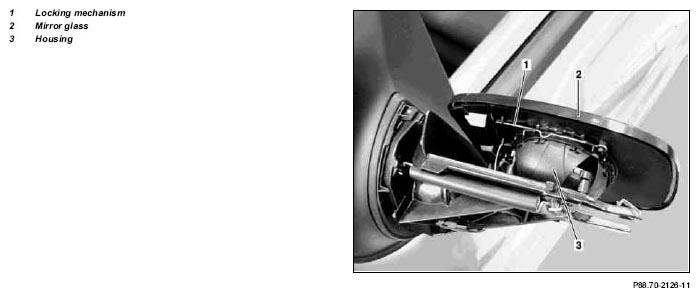

Fig 1: Identifying Locking Mechanism, Mirror Glass & Housing
G04609145
REMOVINGINSTALLING Removing and installing
1 Remove outside rearview mirror covering   AR88.70-P-9040GI
2 Open locking mechanism (1)
3 Separate mirror glass (2) from housing (3) NOTES Separate carefully to avoid braking retaining clips.
IMPORTANTInstallation:  Ensure that retaining clips catch properly.

4 Disconnect electrical connectors from mirror heater IMPORTANT 3 electrical connectors.
5 Install in the reverse order
