Remove/install engine hood lock - AR88.40-P-3200GI

MODEL 163.136 /154 /172 #A as of 145273, 163.136 /154 /172 #X as of 708319, 163.113/128/157/174/175

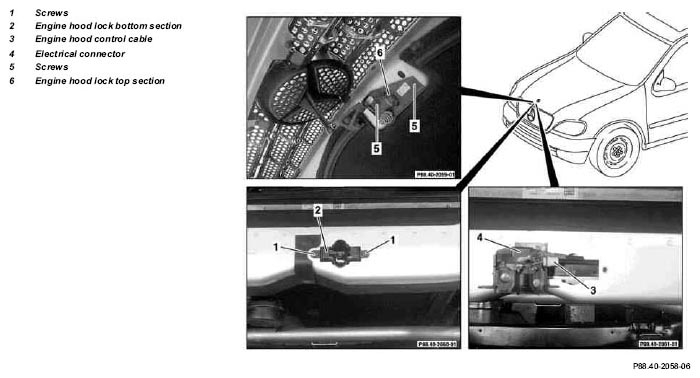

Fig 1: Identifying Engine Hood Lock Components

	Removing and installing
1	Open engine hood and raise to vertical position		AR88.40-P-1000GI
2	Unscrew screws (1) and remove engine hood lock bottom section (2) upward		*BA88.40-P-1003-01C
3.1	Disconnect electrical connector (4) from engine hood lock bottom section (2)	Only when equipped with ATA  .
4	Unhook engine hood control cable (3) from engine hood lock bottom section (2)	Pull out engine hood control cable slightly.
5	Remove engine hood lock bottom section (2)	Installation:  Ensure that engine hood control cable is routed carefully.
6	Unscrew screws (5) and remove engine hood lock top section (6)	Mark installation position for engine hood lock top section on engine hood.	*BA88.40-P-1004-01C
7	Install in the reverse order
8	Check alignment of engine hood	If necessary: ↓ Adjust engine hood	AR88.40-P-3020GH
9	Lubricate engine hood lock Lubricate hood lock, safety hook and hinges		AP88.40-P-8821GH
10	Perform function check
11	Check function of safety hook	For this purpose, close engine hood, unlock and check arrest on radiator cross member.
