Remove/install Mercedes star - AR88.40-P-4050R

MODEL 163, 203.7, 215, 230.4

Shown on model 230

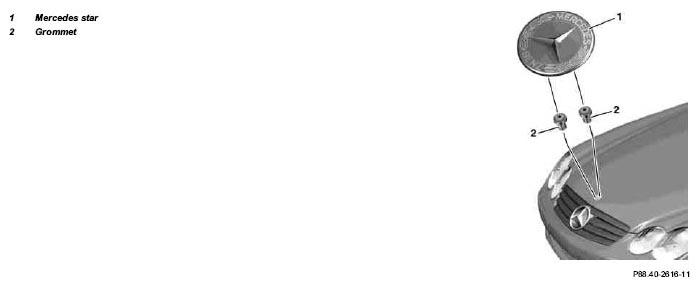

Fig 1: Identifying Mercedes Star And Grommet

	Remove/install
1	Unclip Mercedes star (1) upward from engine hood with long wedge.	Protect engine hood around Mercedes star (1) with adhesive tape to avoid damaging paint.	Figure
2	Remove grommets (2)	Check grommets (2), replace if necessary.
3	Install in opposite order

Fig 2: Identifying Long Wedge (115 589 03 59 00)
