Remove brush guard - AR88.30-P-2000-01GI
| Number | Designation | Model 163 as of 1.9.01 | |
|---|---|---|---|
| BA88.30-P-1003-01A | Screw of mount on brush guard | Nm | 25 |
| BA88.30-P-1015-01A | Nut of underride guard to bracket | Nm | 49 |
| BA88.30-P-1016-01A | Bolt of front section of underride guard to rear section of underride guard | Nm | 49 |

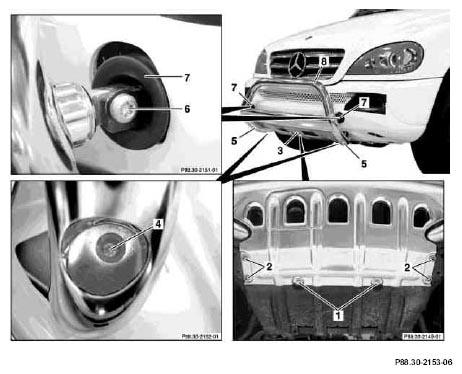

- Remove screws (1) and nuts (2) of underride guard (3) on bottom side of vehicle.
Only if available.
- Remove screws (4) of bracket on brush guard.
- Remove screws (6) of bracket on brush guard behind grommets (7).
- Remove brush guard (8).
