Retrofit underride guard on brush guard - AN88.30-P-0003-01A

Model 163.113/128 /136 /154 / 157 /172 /175 except Styling package, code U49 and Parktronic system (PTS), code 220a

Detachable body components, underride guard

Number	Designation		Model 163 up to 31.8.01	Model 163 as of 1.9.01
BA88.30-P-1011-01A	Bolt of underride guard to brush guard	Nm	25	25

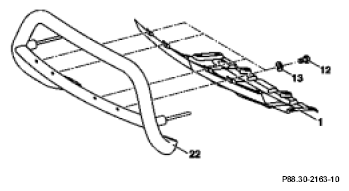

Fasten front part of underride guard (1) with attached bolts M8X20 (12)and shims ø 16X8.4X1.6 (13) to brush guard (22).
Insert brush guard together with front part of underride guard in front bumper and align.
When inserting the brush guard ensure that the paintwork of the front bumper is not damaged.

Illustrated up to VIN A289564, X754619

Fig 1: Identifying Front Part Of Underride Guard, Bolts, Shims & Brush Guard

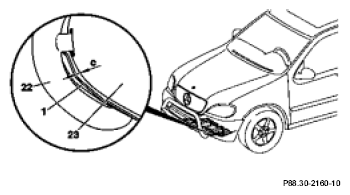

Check distance (c) between front part of underride guard and front bumper.
The distance (c) must be at least 6 mm.

Fig 2: Identifying Distance Between Front Part Of Underride Guard And Front Bumper

Only if the distance (c) between front part of underride guard and front bumper is less than 6 mm and simultaneously VIN up to A289564, X754619 is present, the spacers (19) must be screwed on the threaded rods of the brush guard (22).
Extend brush guard with front part of underride guard out of front bumper and place to the side.
Make sure that polished or coated surfaces are not scratched or damaged.

Fig 3: Identifying Spacers And Brush Guard
