Detachable Body Components -- 163 Chassis
>>
Basic Knowledge
>>
Electrically adjustable exterior mirrors, location of components - GF88.79-P-0005-01GH
Electrically adjustable exterior mirrors, location of components - GF88.79-P-0005-01GH
Valid up to 31.08.01

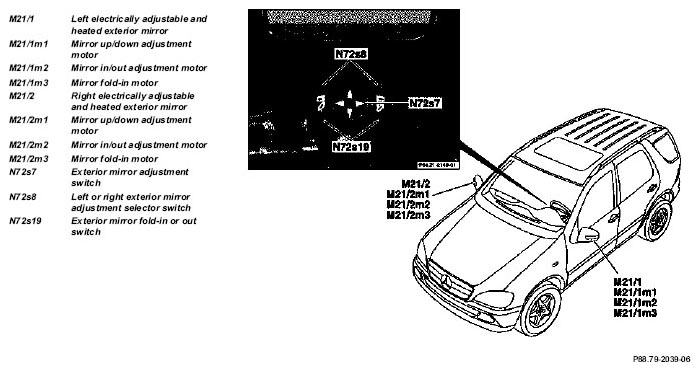

Fig 1: Identifying Electrically Adjustable Exterior Mirrors Components Location - Valid Up To 31.08.01
Valid as of 01.09.01
Fig 2: Identifying Electrically Adjustable Exterior Mirrors Components Location - Valid As Of 01.09.01
