| 1 |

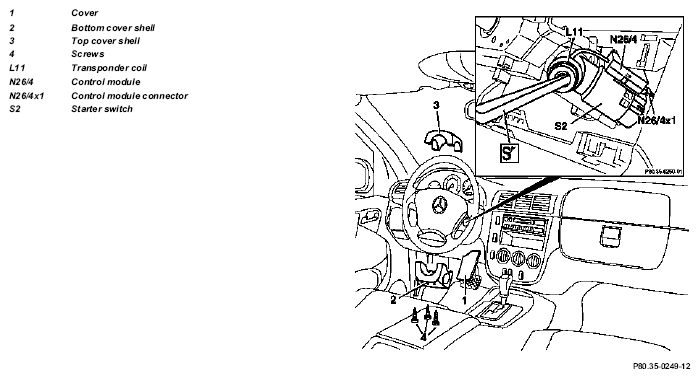

Unclip cover (1) on right next to steering column from bottom section of instrument panel |
|
|
| 2 |
Unscrew screws (4) from steering column lever |
|
|
| 3 |
Remove cover shells (2, 3) from steering column switch |
|
|
| 4 |
Slide control module (N26/4) out of guide on starter switch (S2) |
|
|
| 5 |
Disconnect connector (N26/4x1) from control module (N26/4) |
|
|
| 6 |
Press transponder coil (L11) off of cover sleeve for starter switch (S2) |
 |
Fig 2 |
| 7 |
Remove transponder coil (L11) together with control module (N26/4) |
|
|
| 8 |
Reinstall in opposite order |
|
|
