Removing, installing tailgate central locking motor - AR80.20-P-4005GH

MODEL 163

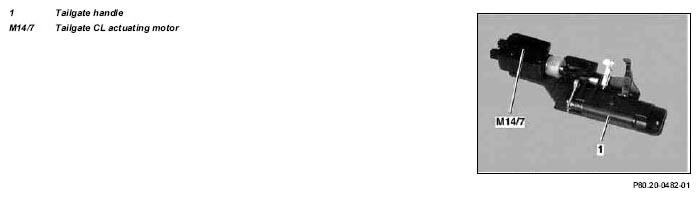

Fig 1: Identifying Tailgate Central Locking Motor

	Removal, installation
1	Remove tailgate lock		AR72.20-P-2550GH
2	Remove tailgate CL actuating motor (M14/7) from tailgate handle (1)
3	Check tailgate CL actuating motor (M14/7) for proper function	Actuate central locking with tailgate open
4	Reinstall in opposite order
