Removing, installing fuel filler flap central locking motor - AR80.20-P-4004GH

MODEL 163

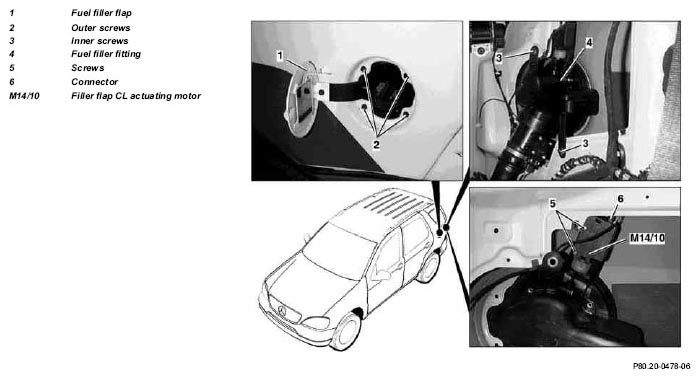

Fig 1: Identifying Fuel Filler Flap Central Locking Motor

	Removal, installation
1	Remove paneling on C-pillar	Remove paneling on left C-pillar	AR68.30-P-4490GH
2	Remove fuel filler flap (1)
3	Unscrew outer screws (2) on fuel filler	When installing:  Ensure that rubber seal is properly seated
4	Unscrew inner screws (3) on fuel filler
5	Unscrew filler flap CL actuating motor (M14/10)	Push filler fitting to right and unscrew screws from filler flap CL actuating motor
6	Disconnect connector (6)
7	Reinstall in opposite order
8	Check for proper function	Actuate central locking with fuel filler flap open
