Removing, installing folding key in remote control key - AR80.35-P-4220G

MODEL 129 as of 1.6.97

MODEL 140 as of 1.6.97

MODEL 163

MODEL 170

with CODE (491) USA version

with CODE (498) Japanese version

MODEL 170 as of 1.6.97

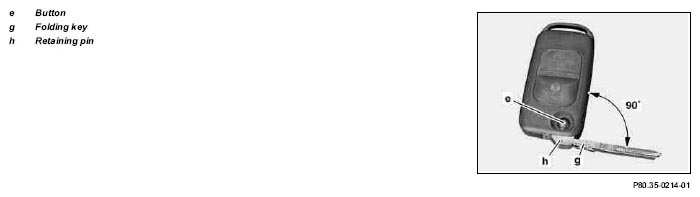

Fig 1: Identifying Folding Key In Remote Control Key

	Removal, installation
1	Press button (e)
2	Swing folding key (g) out approx. 90°
3	Press out retaining pin (h) with 1.5 mm dia. punch
4	Pull out folding key (g)
5	Reinstall in opposite order
