Removing and installing batteries for remote control key - AR80.35-P-4210GC

MODEL 163, 168, 414

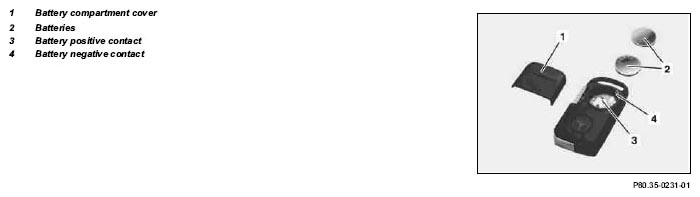

Fig 1: Identifying Batteries For Remote Control Key

	Removing, installing
1	Press off battery compartment cover (1)
2	Remove batteries (2) and replace	Dispose of discharged batteries properly. Installation:  Observe polarity of batteries. Ensure that the battery contacts (3, 4) make proper contact with the battery.
3	Install in the reverse order
4	Synchronize transmitter signal for radio remote control	Model 163	AR80.35-P-4215GH
		Models 168, 414	AR80.35-P-4215GC
