CL test of electrical system rear doors rotary tumbler microswitch - AD80.20-P-6001-40GH
CL test of electrical system rear doors rotary tumbler microswitch - AD80.20-P-6001-40GH

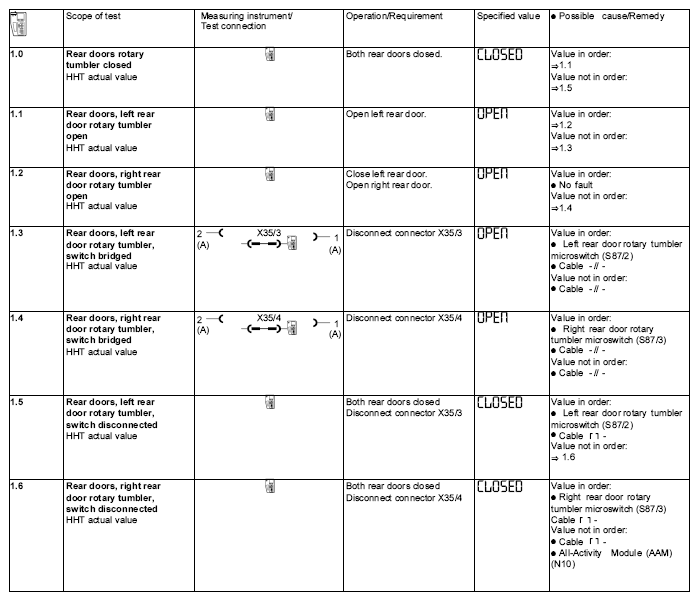

Fig 1: CL Test Of Electrical System Rear Doors Rotary Tumbler Microswitch
