Removing and installing loudspeakers in rear doors - AR82.62-P-7874GH
MODEL 163
| Removal, installation | |||
|---|---|---|---|
| Switch off radio | |||
| 1 | Remove door liner on rear door | AR72.12-P-1010GH | |

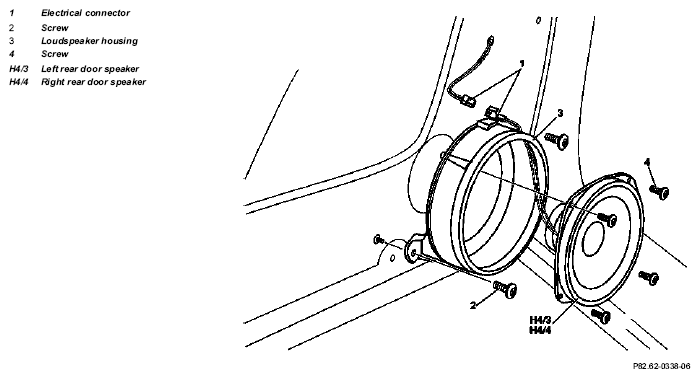

| 2 | Disconnect electrical connector (1) | ||
| 3 | Unscrew screws (2) and remove loudspeaker housing (3) | ||
| 4 | Unscrew screws (4) and remove loudspeaker (H4/3, H4/4) | ||
| 5 | Reinstall in opposite order | ||
| 6 | Check for proper function |
