Remove/install fog lamp - AR82.10-P-5103GI

MODELS 163.113/154#A as of 289565, 163.113 /154 #X as of 754620, 163.128/157/175

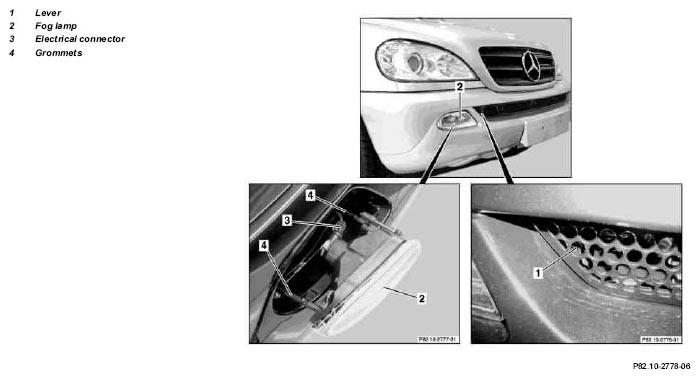

Fig 1: Identifying Fog Lamp Components

	Remove/install
1	Press lever (1) to release the fog lamp (2)	Pulling hook	Fig 2
2	Disconnect fog lamp (2) from front bumper	Exercise caution when pulling at the edges of the fog lamp. Installation:  First notch in the fog lamp at the edges. Ensure that the lever (1) securely holds the fog lamp in place.
		Pulling hook	Fig 2
3	Disconnect electrical connector (3) from fog lamp
4	Pull off grommets (4)	Installation:  Ensure that the grommets are installed loosely and without kinks.
5	Install in the reverse order
6	Check fog lamp adjustment and adjust if necessary
	Check and correct headlamp adjustment		AP82.10-P-8260GH

Fig 2: Identifying Pulling Hooks (140 589 02 33 00)
