Remove/install control module for E-Call emergency call system - AR82.95-P-0008GH

MODELS 163.113 /128 /154 /157 /172 /174 /175 with CODE (349) E Call emergency call system with CODE (460) Additional parts Canadian vehicles with CODE (494a) USA version

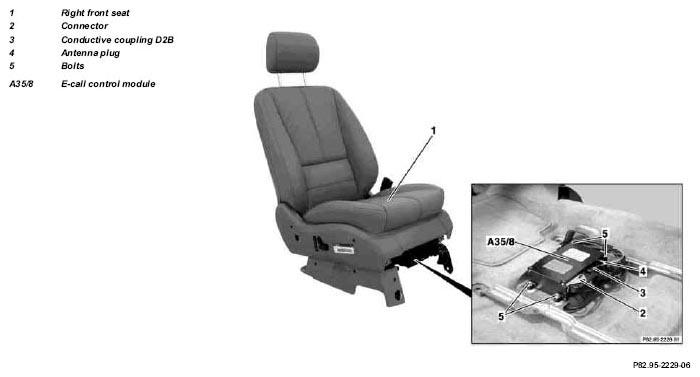

Fig 1: Identifying E-Call Control Module Components

	Remove/install
1	Remove fuse f8 from fuse and relay module
2	Unscrew screws on front seat console		*BA91.10-P-1001-01B
3	Angle front seat back until it rests against the rear bench seat and fasten with outer seat belt	Remove wiring harness for E-call speaker from E-call bracket. Cover the floor covering behind the front seat to avoid contamination.
4	Detach connector (2) and antenna plug (4) from the E-call control module (A35/8)
5	Detach conductive coupling D2B (3)	Do not kink or stretch fiber optic cable. Press protective caps on conductive coupling and device connection.	AR82.95-P-0005-01A
6	Unscrew screws (5)
7	Remove E-call control module (A35/8)
8	Install in the reverse order
