Installing auxiliary cable harness on side wall taillamp - AR82.10-P-4920-01GH

Models 163.154/174 as of VINA289565 to VIN A371934, model 163.175 up to VIN A371934 with USA version code 494a

1. Insert plug (1) of auxiliary cable harness (2) in socket (3) of side-marker lamp.
2. Insert the plug on the other end of the wiring harness in the free connection pins in the opening (4) of the lamp support (5).

   The brown line (ground) should be on the outside. Ensure that the plugs are completely pushed onto the connection pins.

3. Seal the lines and opening (4) with a thermoplastic adhesive gun.

   Give the adhesive sufficient time to dry before installing the taillamp.

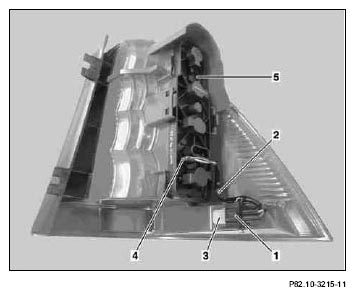

   Fig 1: Identifying Auxiliary Cable Harness On Side Wall Taillamp
