Audio 30 APS test of electrical system wheel speed signal - AD82.61-P-6001-03A
Audio 30 APS test of electrical system wheel speed signal - AD82.61-P-6001-03A
&(AD42.45-P-1002BZ)

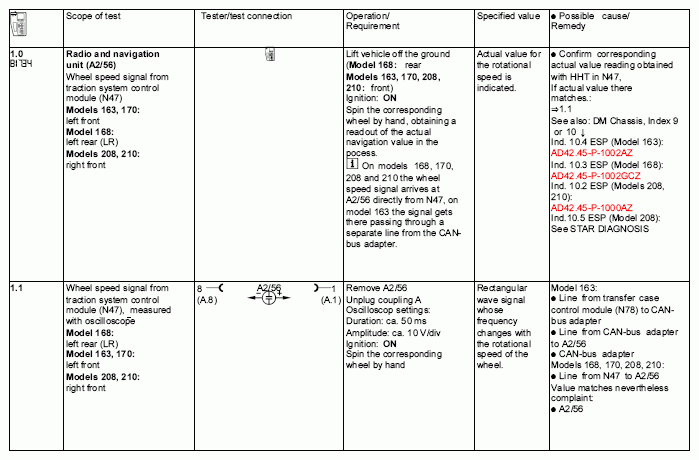

Fig 1: Audio 30 APS Test Of Electrical System Wheel Speed Signal
