Windshield wiper system, location of components - GF82.30-P-0005-01GH

Location of components

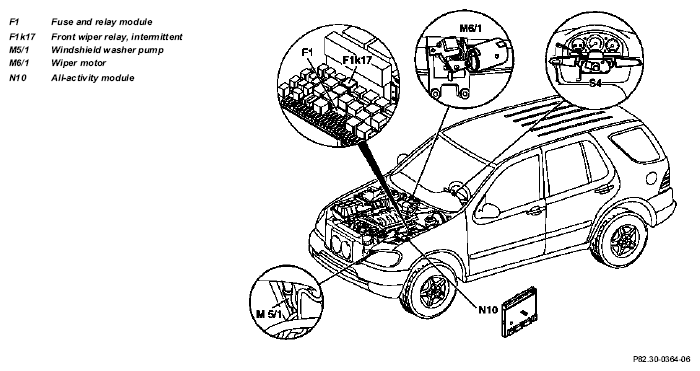

Fig 1: Identifying Windshield Wiper System Components Location
G04608480

IMPORTANT

As of 1.9.00 the vehicle is also offered with rain sensor (B38) code 344a. It is glued to the windshield.
