Rain Sensor - Location/Task/Design/Function - GF82.30-P-4103GH
MODEL 163 with code 345a Rain sensor

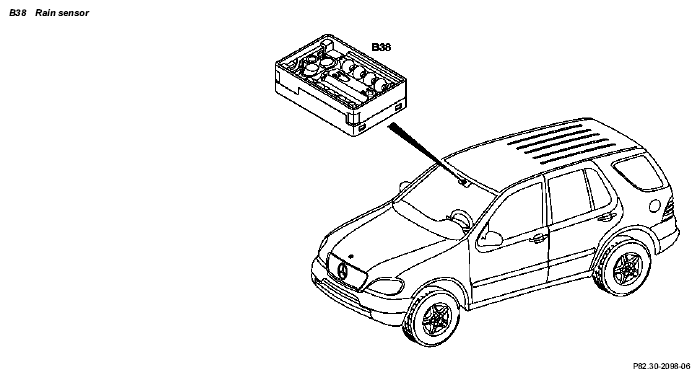

| Rain Sensor - Location | The rain sensor (B38) is adhered to the inside surface of the windshield. | ||
| Rain Sensor - Task | The rain sensor (B38) assesses the rain intensity on the windshield and automatically adjusts the intermittent wiper speed. In addition, light sensors gauge ambient light conditions and this data is used to control the vehicle's light system. | ||
| Rain Sensor - Design | The rain sensor (B38) comprises an IR transmitter and receiver unit, light sensors and an electronic data analysis and interface circuit. The rain sensor (B38) is connected to the engine compartment CAN . | ||
| Rain Sensor - Function | GF82.30-P-4103-02GH |
