Guidance, function - GF82.61-P-3012GI
MODEL 163 as of 1.9.01 with CODE (522) Modular control system (MCS) radio USA with CODE (357) Navigation system - additional unit with CODE (818b) Single CD player - additional unit with CODE (491) U.S. version

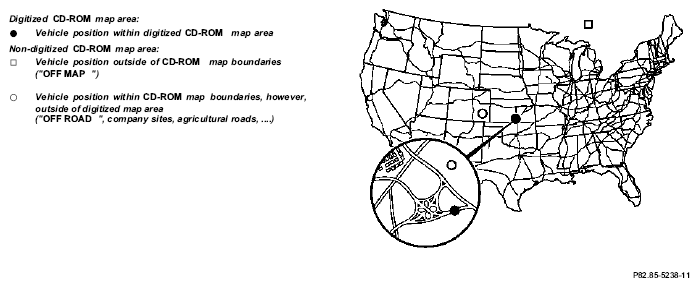

Digitized and non digitized CD-ROM map areas
The road network is indicated in extremely simplified form.
Guidance is the generation and output of driving recommendations, in order to guide the driver to the desired destination. The prerequisites for route guidance are:
- Permanent location finding is in operation (is accomplished automatically),
- destination has been entered and
- the route has been calculated.
The navigation processor permanently compares the data from route calculation with the data from permanent location finding using this information for measures for further guidance . Two route guidance operating modes can be distinguished depending on the vehicle position (see figure):
- Guidance within the digitized CD-ROM map area.
- Limited guidance outside of the digitized CD-ROM map area.
| Guidance in digitized map area, function | GF82.61-P-4000GI | ||
| Guidance in non-digitized map area, function | GF82.61-P-4001GI |
