Audio 30 APS operating instructions - GF82.61-P-0002-03A

Models 163, 168, 170, 208, 210 with code 353

Controls on radio and navigation unit (A2/56) with explanations of primary functions.

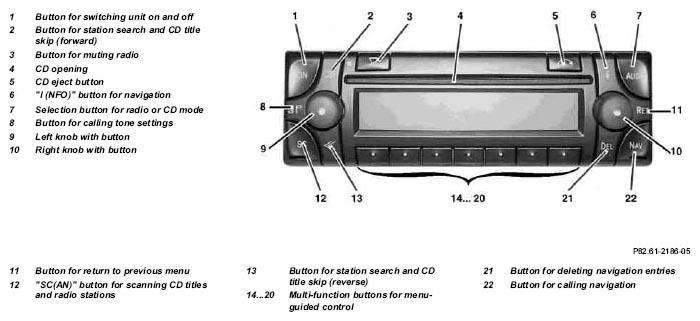

Fig 1: Identifying Radio And Navigation Unit Controls

Activating anti-theft alarm

During initial operation of the radio and navigation unit (A2/56) it is necessary to activate the anti-theft alarm with the aid of the hand-held tester.

After activation has been accomplished, deactivation is no longer possible.

Only after activation is it necessary to enter a 5-digit code after interruption of the power supply. When entering the code observe:

After the code has been entered incorrectly three times the message "Wait" appears. The radio and navigation unit (A2/56) is then disabled for ten minutes. ↓
Following the next three incorrect entries operation is not possible for ten minutes again. ↓
Then after an additional 3 incorrect entries the unit is disabled for 1 hour in each case.

The waiting time expires only with the radio and navigation unit (A2/56) switched on.

Inserting and ejecting CD

CDs can be inserted and ejected (audio or navigation CD) in all operating states. After pressing the "eject button" a CD already inserted is ejected by a motor. If the CD is not removed within approx. 14 seconds, it is pulled back in automatically.

After inserting a CD it is necessary to push it a slight distance into the CD opening; it is then pulled in the rest of the way automatically.

When a navigation CD is inserted the menu for entering destination is activated automatically. However, this applies only when the system has previously requested that the navigation CD be inserted.

The eject button for the CD drive also functions when the radio and navigation unit (A2/56) is in the "code wait state". This means that a CD can be removed in spite of the request to enter the anti-theft code.

Glossary

Abbreviation	Meaning	Explanation
AM	A mplitude M odulation	The amplitude of the carrier frequency is modulated with the signal (e.g. LW, MW and SW radio)
CD	C ompact D isc	Storage medium for all types of data (music, programs,).
D2B	D igital D ata B us	Optical bus system for transfer of data via fiber optic cable.
FM	F requency M odulation	The signal is transmitted by changing the frequency of the carrier (e.g. FM radio)
GPS	G lobal P ositioning S ystem	System for position finding with the aid of satellites
GSM	G lobal S ystem for M obile or also G lobal S tandard of M obile communication	International standard for mobile telecommunication.
LW	L ong W ave	Certain relatively low frequency range within which radio signals are transmitted (compare UHF and MW).
MW	M edium W ave	Certain frequency range within which radio signals are transmitted (compare UHF and LW).
POI	P oints of I nterest	Locations of geographic or tourist interest.
PTY	P rogram Ty pe	RDS feature describing the program contents of the radio station (pop, culture, classics,)
RDS	R adio D ata S ystem	Standard for transmission of information via FM radio station (station name, e.g. SWR3 or program type (see PTY),)
TCS	T raffic C enter S ervice	Standard for transmission of traffic information via cellular telephone network. Presently not used by Audio 30 APS (status: 3/99)
TMC	T raffic M essage C hannel	Standard for FM / RDS transmission of traffic information. Presently not used by Audio 30 APS (status: 3/99)
TP	Traffic Program	RDS feature. Indicates that the station tuned in is a traffic station.
UKW	Ultra-high frequency	Certain frequency range within which radio signals are transmitted (relatively high frequency, compare LW and MW).
ZE	Destination entry	Entry of town and street name for desired trip destination.
ZF	Guidance	Function of navigation system.
	Other terms: Intermediate frequency	The IF signal is required for the antenna diversity function. With this function the antenna with the best reception is automatically selected on vehicles with a system of FM antennas. This function is not used presently. (Status: 3/99)
