Installing sound system jumper harness - AF82.60-P-1010-01AG

Insert sound system jumper harness through radio opening
Position jumper harness within cockpit assembly so that jumper harness is routed above HVAC venturi tube and lays across base of steering column.
Plug male radio harness connector A/B (1) into corresponding female connector (2) of jumper harness
Secure connectors, phone antenna and phone power lead with cable tie (3) next to radio harness mounting clip on HVAC case

Fig 1: Identifying Phone Power Lead With Cable Tie, Male Radio Connector And Corresponding Female Connector
Attach jumper harness (4) to steering column mounting bracket with integrated harness clip (5) and clip on female amplifier connector (6) of jumper harness
Secure jumper harness (4) to dash support bracket with cable tie (7)
Install cable tie on convolute tubing protected area of jumper harness.

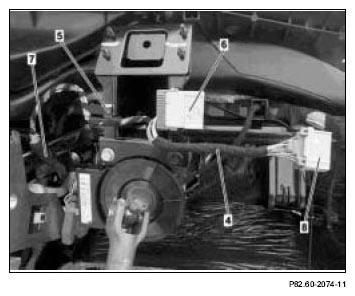

Fig 2: Identifying Female Amplifier Connector, Cable Tie And Harness Clip
Cut slot in insulation to access sound system amplifier (A2/13) electrical connectors.
Disconnect male connector A/B (9) on sound system amplifier and plug into female amplifier connector (6) of jumper harness
Plug male connector A/B (8) of jumper harness into corresponding connection on sound system amplifier
Refit insulation

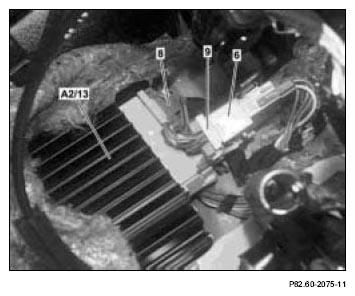

Fig 3: Identifying Sound System Amplifier, Plug Male Connector A/B And Integrated Harness Clip
