Global positioning system (GPS) malfunction - AF82.61-P-6010A

MODEL 163.113 /136 /154 /172 /174 #A as of 145273 up to 289564, 163.113 /154 #X as of 708319 up to 754619 with CODE (353) Audio 30 APS

Operation no. of operation texts or standard texts and flat rates

Sector	Op. no.	Operation text	Time	Acc. no.	Code
P	023578	REPLACE REAR ANTENNA FOR GLOBAL POSITIONING SYSTEM (GPS) (AFTER TESTING)	003 AW/0,3 h	82 858 52	-

Damage code	Cause	Remedy
	Inadequate seal between antenna base and vehicle roof causes antenna connector to corrode. The parts kit for the Global Positioning System (GPS) antenna was updated. Instead of a foam seal (4), a grommet (5) is now used to seal the antenna base to the vehicle roof. The new 163 820 18 75 part number replaces the former 163 820 06 75 part number.	1 Replace GPS antenna. Use new parts kit only.	AR82.61-P-7474GI

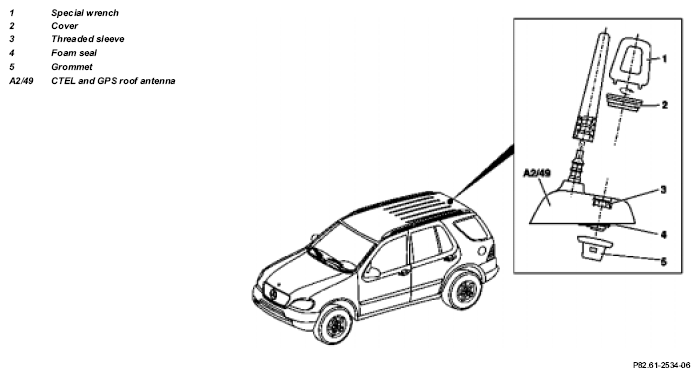

Fig 1: Identifying GPS Rear Antenna Components

Parts ordering notes

Part no.	Designation	Quantity
163 820 18 75	Antenna	1
