Replace fiber optical cable (D2B) between radio and sound amplifier (after testing) - AR82.62-P-8350GH
MODEL 163.113 /154 /174 #A as of 289565, 163.113 #X as of 754620, 163.128 /157 /175 with CODE (810) Sound system
| Remove | |||
|---|---|---|---|
| Notes on fiber optic cable | Models 129, 163, 168, 170, 202, 203, 208, 209, 210,215,220,230,463 | AH82.70-P-0001-02A | |
| Fiber optical cable, location | Model Series 163 | GF82.00-P-4000-01GH | |
| 1 | Remove radio (A2) | AR82.60-P-7502EA | |
| 2 | Remove cover below instrument panel on driver's side | AR68.10-P-1500GH | |
| 3 | Unscrew screw on Sound amplifier (A2/13) and disconnect D2B B-plug | ||
| Install | |||
| 4 | Pull the red insert of the D2B-wiring harness out of the D2B-plug on the sound amplifier (A2/13) and replace with the red insert of the exchange D2B wiring harness | AR82.70-P-0004-01A | |

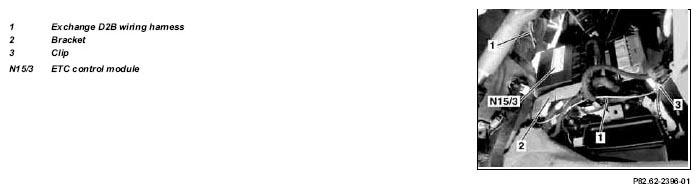

| 5 | Route the exchange D2B wiring harness (1) behind the instrument panel along the existing wiring harness to the bracket (2) for the ETC [EGS] control module (N15/3) / plug of the interior wiring harness | ||
| 6 | Route the exchange D2B wiring harness (1) behind the bracket (2) for the ETC [EGS] control module (N15/3) to the clip (3) for the shift lock cable | ||
| 7 | Route exchange D2B-wiring harness (1) to the radio installation opening | ||
| 8 | Secure exchange D2B wiring harness (1) on existing wiring harness at the red adhesive tape markings provided for this | ||
| 9 | Pull the white insert of the D2B wiring harness out of the D2B plug on the radio and replace with the white insert of the exchange D2B wiring harness (1) | AR82.70-P-0004-01A | |
| 10 | Secure exchange D2B wiring harness (1) on existing rear wiring harness in the radio installation opening | ||
| 11 | Plug D2B plug into the sound amplifier (A2/13) and fasten the sound amplifier (A2/13) with a screw | ||
| 12 | Remove cover below instrument panel on driver's side | AR68.10-P-1500GH | |
| 13 | Install radio (A2) | AR82.60-P-7502EA |
