Remove/install xenon headlamp control unit - AR82.10-P-4632GI
MODEL 163.113 #X as of 754620, 163.113 /154 /174 #A as of 289565, 163.128/157/175
| Remove/install | |||
|---|---|---|---|
| Risk of death
caused by high voltage levels present at xenon headlamps. Risk of explosion/fire hazard through highly flammable material in the area of damaged xenon bulbs. Risk of injury through UV light, hot components on xenon headlamps and glass splinters when xenon bulbs burst. Risk of poisoning through inhalation of mercury vapor and swallowing of or skin contact with toxic salts and mercury compounds. |
Do not come into contact with parts that are under high voltage. Persons with active electronic implants (e.g. heart pacemakers) must never work on xenon headlamps. Switch off complete lighting system. Wear insulating safety shoes, safety glasses and protective gloves. Remove highly inflammable materials from the hazard area. Ensure that the workplace is sufficiently ventilated. | AS82.10-Z-0001-01A | |

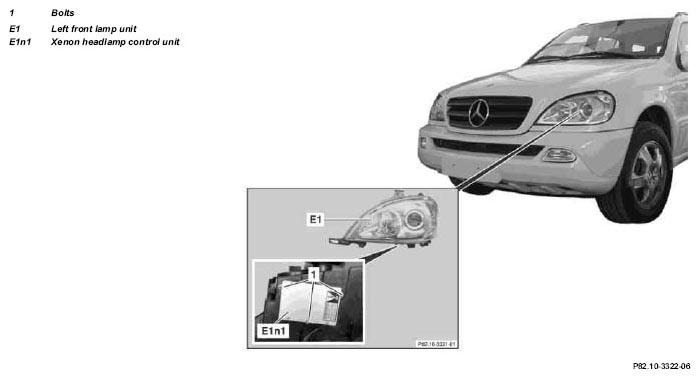

| 1 | Remove left front lamp unit (E1) or right front lamp unit | AR82.10-P-4730GH | |
| 2 | Place headlamp in inverted position on workbench | ||
| 3 | Remove bolts (1) | ||
| 4 | Remove Xenon headlamp control unit | ||
| 5 | Install in the reverse order | ||
| 6 | Set headlamps to zero position using STAR DIAGNOSIS | ||
| 7 | Inspect headlamp adjustment, correct if necessary. | ||
| Check and correct headlamp adjustment | AP82.10-P-8260GH |
