Remove/install woofer - AR82.62-P-7839GH

MODEL 163.113 /128 /136 /154 /157 /172 /175 with CODE (810) Sound system

MODELS 163.174

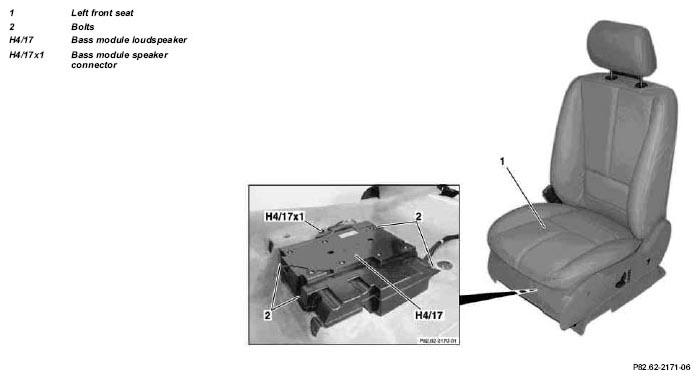

Fig 1: Identifying Woofer Components

	Remove/install
1	Unscrew screws on front seat console		*BA91.10-P-1001-01B
2	Angle front seat back until it rests against the rear bench seat and fasten with outer seat belt	Cover the floor covering behind the front seat to avoid contamination.
3.1	Remove air duct at the rear of the front seat	Only as of VIN A289565, X754620. 1 screw.
4	Detach bass module speaker connector (H4/17x1)
5	Unscrew screw (2)
6	Remove bass module speaker (H4/17)
7	Install in the reverse order
