Remove/install rear dome lamp - AR82.20-P-0113GH

MODEL 163.113 /128 /136 /154 /157 /172 /174 /175

Shown on model 163 without Parktronic system (PTS), code 220a

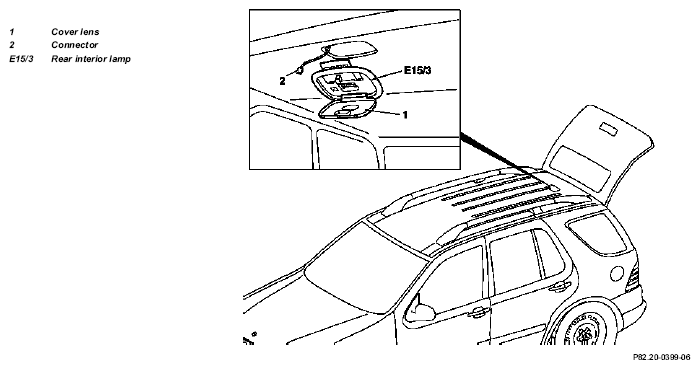

Fig 1: Identifying Rear Dome Lamp Components

	Remove/Install
1	Prize off glass cover (1) of the rear interior lamp (E15/3) and fold up until it reaches the limit stop
2.1	Disconnect connector from Parktronic system warning display	Only with Parktronic system (PTS), code 220a.
3	Remove rear interior lamp (E15/3) from inside roof lining	For removal pull dome lamp on rear housing edge downward and simultaneously forward.
4	Remove connector (2) from rear interior lamp (E15/3)
5	Install in the reverse order	Installation:  If dome lamp is replaced in models 163.113 /128 /136 /154 /172 /174 /175 without Parktronic system (PTS), code 220a up to vehicle identification number A346574: ↓
		Changing dome lamp in the rear	AR82.20-P-0113-01GH
	Changing dome lamp in the rear		BT82.20-P-0001-03GH
