Remove/install loudspeaker amplifier control module - AR82.62-P-7720GH

MODELS 163.113 /128 /136 /154 /157 /172 /175 with CODE (810) Sound system

MODEL 163.174

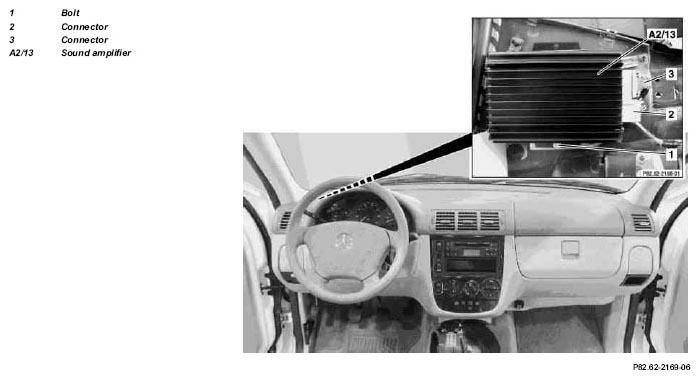

Fig 1: Identifying Loudspeaker Amplifier Control Module Components

	Remove/Install
1	Remove cover below instrument panel on left side	Left-hand drive vehicle.	AR68.10-P-1500GH
		Right-hand drive vehicle.	AR68.10-P-1520GI
2	Unscrew screw (1) and detach Sound amplifier (A2/13) from bracket	Lay insulation down to side.
3	Disconnect connector (2, 3)	As of VIN A289565, X754620: only one connector.
4.1	Disconnect conductive coupling D2B	Do not kink or stretch fiber optical cable. Press protective caps on conductive coupling and device connection. As of VIN A289565, X754620.	AR82.95-P-0005-01A
5	Remove Sound amplifier (A2/13)	Do not damage leads and insulation.
6	Install in the reverse order
