Remove/install headlight beam adjustment control module - AR82.10-P-4081GH
MODELS 163.154 /172 /113 with CODE (612b) Xenon headlamp unit
MODELS 163.174/175/128/157
| Remove/Install | |||
|---|---|---|---|
| 1 | Remove cover below instrument panel (left) | AR68.10-P-1500GH | |

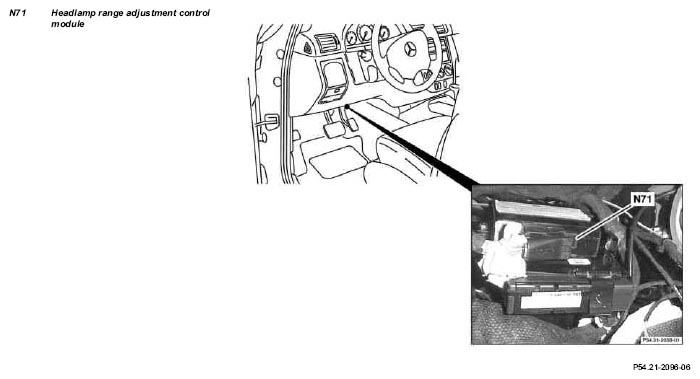

| 2 | Disconnect connector from headlamp range adjustment control module (N71) | ||
| 3 | Unscrew headlamp range adjustment control module from mount of extended activity module (EAM) | ||
| 4 | Remove headlamp range adjustment control module (N71) | ||
| 5 | Install in the reverse order | ||
| 6 | Adjust headlamp into zero position using STAR DIAGNOSIS | ||
| 7 | Inspect headlamp adjustment, correct if necessary. | ||
| Check and correct headlamp adjustment | AP82.10-P-8260GH |
