Remove/install fog lamp - AR82.10-P-5103GH
MODEL 163.113 /128 /136 /154 /157 /172 /175 with CODE (U49) Styling package
MODEL 163.174
  |
Remove/Install |
|
|
| 1 |

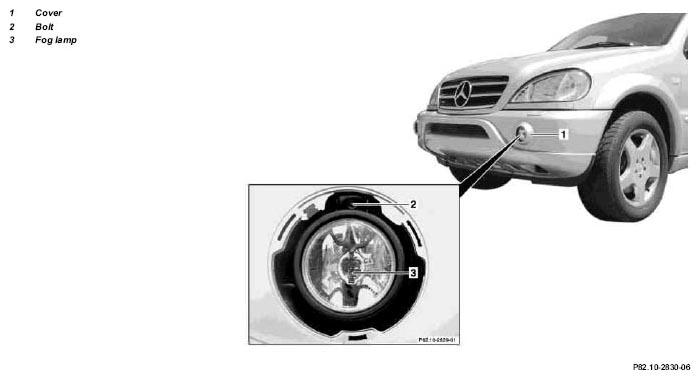

Remove cover (1) |
|
|
| 2 |
Unscrew bolt (2) |
|
|
| 3 |
Remove fog lamp (3) from bumper |
|
|
| 4 |
Disconnect connector |
|
|
| 5 |
Install in the reverse order |
|
|
