Retrofitting wiring harness - AN82.61-P-0001-01H

Model 163 with automatic transmission

Prepare adapter wiring harness (4) as shown in figure.

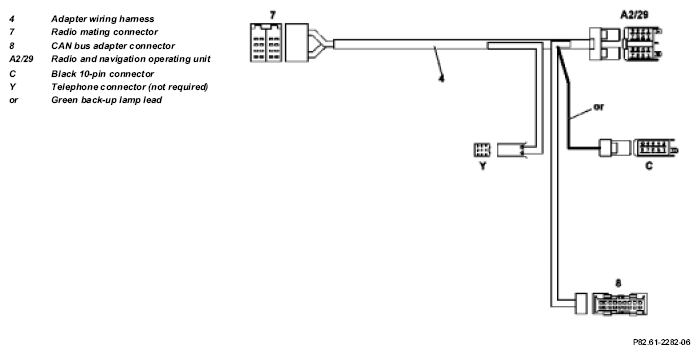

Fig 1: Identifying Retrofitting Wiring Harness - Prepare Adapter Wiring Harness
Route wiring harness (4) along existing leads in vehicle as shown in figure.

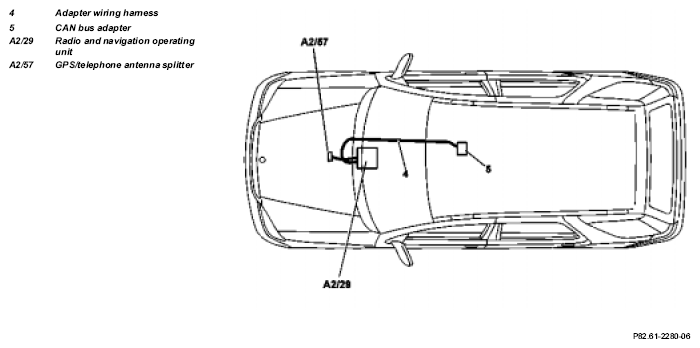

Fig 2: Identifying Retrofitting Wiring Harness - Route Wiring Harness Along Existing Leads In Vehicle
Connect adapter wiring harness (4) to standard wiring harness and radio and navigation operating unit (A2/29) with radio mating connector (7).

Fig 3: Identifying Adapter Wiring Harness, Radio And Navigation Operating Unit And Radio Mating Connector
Connect black 10-pin connector (C) to radio and navigation operating unit (A2/29).
Connect GPS antenna lead (41) as shown in figure.

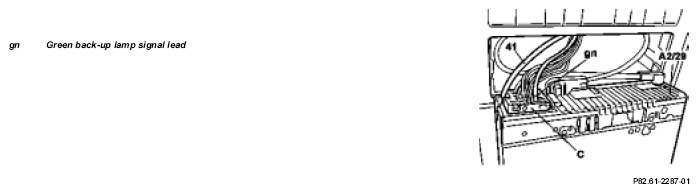

Fig 4: Identifying 10-Pin Connector, Radio And Navigation Operating Unit, GPS Antenna Lead And Green Back-Up Lamp Signal Lead
Route tie-out to CAN bus adapter (5) from adapter wiring harness (5) to center tunnel at rear.

Fig 5: Identifying CAN Bus Adapter And Adapter Wiring Harness
Position CAN bus adapter mount on strut of center console and mark hole pattern (arrows) as shown in figure.
Drill 6.2 mm dia. mounting holes.

Fig 6: Locating Hole Pattern
Fasten CAN bus adapter (5) with self-tapping screws from CAN bus adapter parts kit.

Fig 7: Identifying CAN Bus Adapter
Install white (ws) and blue (bl) fuse on transfer case control module (N78) from CAN bus wiring harness (9) as shown in figure.

Fig 8: Identifying Transfer Case Control Module, CAN Bus Wiring Harness And Fuse
Disconnect connector from transfer case control module (N78) and connect CAN bus wiring harness (9) between transfer case control module (N78) and standard wiring harness.
Illustration without center console.
Connect CAN connector (6) from CAN bus wiring harness (9) to CAN bus adapter (5).

Fig 9: Identifying Transfer Case Control Module, CAN Bus Adapter And CAN Connector
