Retrofit permanently installed GSM network car phone - AZ82.70-P-0002C
MODEL 163 as of 1.12.99 up to 31.8.00
fixed installation Nokia 6090 CTEL
| Removal | |||
|---|---|---|---|
| 1 | Disconnect ground cable of battery | ||
| AR54.10-P-0003A | |||
| 2 | Remove radio | ||
| 3 | Remove stowage compartment below radio | ||
| 4 | Remove stowage compartment in center armrest | ||
| 5 | Remove wooden cover from shift lever | ||
| 6 | Remove A-pillar paneling at top right | ||
| 7 | Remove glove compartment | ||
| 8 | Remove automatic A/C control panel | ||
| 9 | Remove cover below right instrument panel | ||
| 10 | Tie out D-net antenna lead | ||
| Installation | |||
| 11 | Modify wiring harness and install | AZ82.70-P-0001-04C | |
| 12 | Installing handsfree system microphone | AZ82.70-P-0001-02C | |
| 13 | Install loudspeaker | AZ82.70-P-0001-03C | |
| 14 | Install holder on telephone console | AZ82.70-P-0001-01C | |
| 15 | Installing transmitter/receiver | AZ82.70-P-0001-06C | |
| 16 | Install D-net antenna on roof | Install antenna without modification. |
|
| 17 | Retrofit antenna lead | AZ82.70-P-0002-01A | |
| 18 | Carry out function check | ||
| 19 | Reassemble vehicle 9-1 |

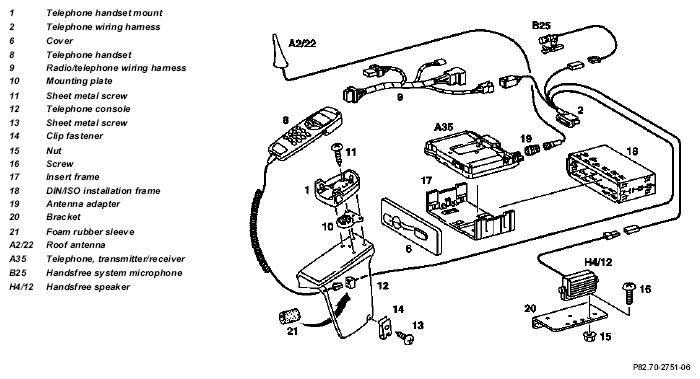

Parts ordering notes
| Part no. | Designation | Quantity |
|---|---|---|
| B6 682 94 14 | Nokia 6090 permanently installed telephone | 1 |
| B6 682 94 13 | Vehicle installation kit (DIN/ISO installation frame) | 1 |
| B6 788 01 28 | Antenna radiator, Kathrein | 1 |
| A000 823 0077 | Antenna adapter, mini UHF/SAP | 1 |
| B6 682 94 18 | Wiring harness assy. | 1 |
| B6 788 03 46 | Telephone console, anthracite, left-hand steering | as req. |
| B6 788 03 49 | Telephone console, anthracite, right-hand steering | as req. |
| B6 788 03 47 | Telephone console, medium orion gray, left-hand steering | as req. |
| B6 788 03 50 | Telephone console, orion gray, medium, right-hand steering | as req. |
| B6 788 03 48 | Telephone console, java, left-hand steering | as req. |
| B6 788 03 51 | Telephone console, java, right-hand steering | as req. |
| KG82 (see EPC) | Packard connector housing | 1 |
| Group 82 (see EPC) | Packard terminals | 7 |
| N007 985 004 107 | Screw | 2 |
| N304 032 004 002 | Nuts | 2 |
| B6 788 03 52 | Bracket | 1 |
