Retrofit permanently installed GSM network car phone - AZ82.70-P-0002A
MODEL 163 up to 30.11.99

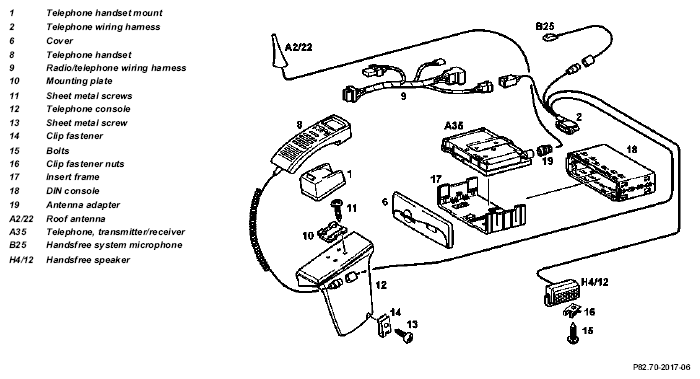

Nokia 6081 permanently installed telephone
| Removal | |||
|---|---|---|---|
| 1 | Disconnect ground cable of battery | ||
| AR54.10-P-0003A | |||
| 2 | Remove radio | ||
| 3 | Remove stowage compartment below radio | ||
| 4 | Remove stowage compartment in center armrest | ||
| 5 | Remove wooden cover from shift lever | ||
| 6 | Remove A-pillar paneling at top right | ||
| 7 | Remove cover below right instrument panel | ||
| 8 | Tie out D-net antenna lead | ||
| Installation | |||
| 9 | Modify wiring harness and install | AZ82.70-P-0001-04B | |
| 10 | Installing handsfree system microphone | AZ82.70-P-0001-02A | |
| 11 | Install loudspeaker | AZ82.70-P-0001-03B | |
| 12 | Install holder on telephone console | AZ82.70-P-0001-01B | |
| 13 | Installing transmitter/receiver | AZ82.70-P-0001-06A | |
| 14 | Install D-net antenna on roof | Install antenna without modification. |
|
| 15 | Carry out function check | ||
| 16 | Fit parts to vehicle 7-1 |
Parts ordering notes
| Part no. | Designation | Quantity |
|---|---|---|
| B6 787 4158 | Permanently installed unit, Nokia 6081 | 1 |
| B6 787 4161 | Vehicle installation kit, Nokia KNME-2 (DIN/ISO installation frame) | 1 |
| B6 788 0128 | Antenna radiator, Kathrein | 1 |
| A000 823 00 77 | Antenna adapter, mini UHF/SAP | 1 |
| B6 787 4162 | Wiring harness assy. | 1 |
| B6 787 6794 | Telephone console, sand, left-hand steering | 1 |
| B6 787 6804 | Telephone console, sand, right-hand steering | 1 |
| B6 787 6798 | Telephone console, gray, left-hand steering | 1 |
| B6 787 6808 | Telephone console, gray, right-hand steering | 1 |
| Group 82 (see EPC) | Packard connector housing | 1 |
| Group 82 (see EPC) | Packard terminals | 5 |
| N914 127 004 204 | Sheet metal screw | 2 |
| A002 994 11 45 | Clip fastener | 2 |
| A000 989 92 71 | Special glue | 1 |
