Removing and installing electric vent window motor - AR67.39-P-1050GH
MODEL 163 with CODE (848) Electric vent window

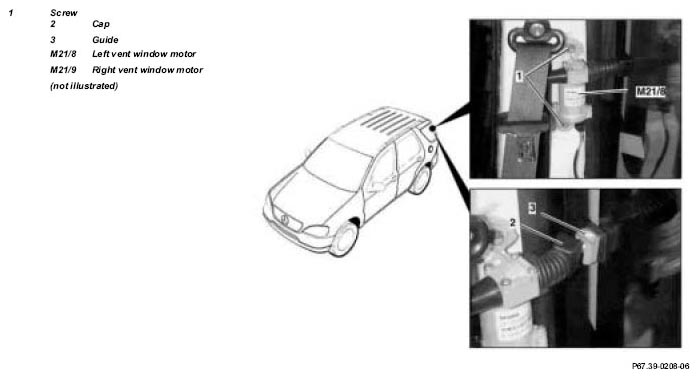

| Removal, installation | |||
|---|---|---|---|
| 1 | Remove paneling at rear of roof frame | AR68.30-P-4470GH | |
| 2 | Disconnect connector from vent window motor (M21/8 or M21/9) | ||
| 3 | Remove screws (1) on vent window motor (M21/8 or M21/9) | ||
| 4 | Remove cap (2) on guide (3) | ||
| 5 | Remove vent window motor (M21/8 or M21/9) on guide (3) | ||
| 6 | Install in opposite order | ||
| 7 | Check for proper function |
