Removing and installing front power seat motor group (seat cushion) - AR91.29-P-1420GH
MODEL 163 with CODE (221b) Electrically adjustable left and right front seats
| Removal, installation | |||
|---|---|---|---|
| 1 | Remove front seat backrest | AR91.10-P-1060GH | |

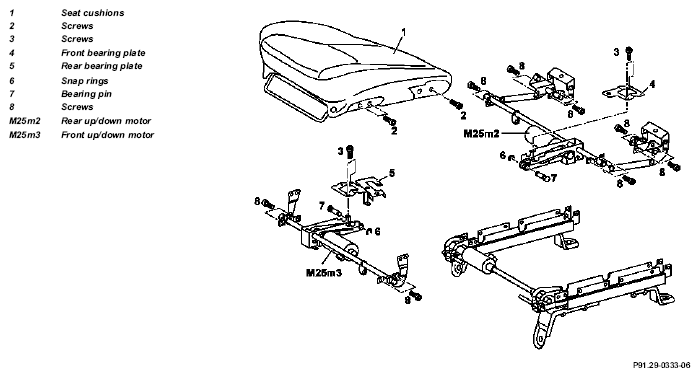

| 2 | Unscrew screws (2) on seat frame | Figure | |
| 3 | Remove seat cushion (1) from seat adjustment mechanism | ||
| 4 | Disconnect connectors from adjustment motors (M25m2, M25m3) | ||
| 5 | Unscrew screws (3) on bearing plates (4, 5) | Figure | |
| 6 | Remove bearing plates (4, 5) | ||
| 7 | Remove snap rings (6) on bearing pins (7), press bearing pins out of fork heads | ||
| 8 | Unscrew screws (8) on shaft bearings | Figure | |
| 9 | Remove adjustment motors (M25m2, M25m3) | ||
| 10 | Install in opposite order | ||
| 11 | Check for proper function |
