Remove, replace and install rear center seat belt - AR91.40-P-0683GI

MODELS 163.136 /154 /172 as of 1.9.99, 163.113/128/157/174/175

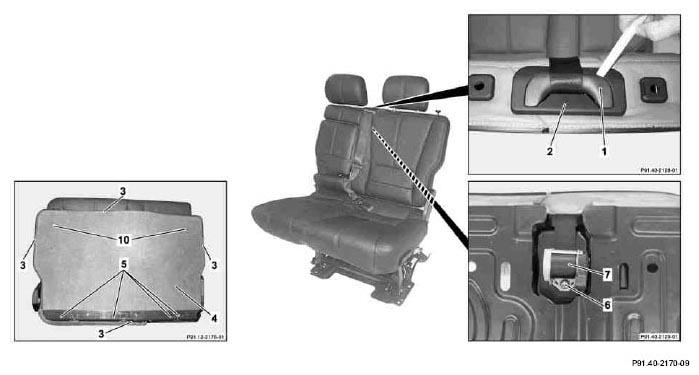

Fig 1: Identifying Rear Center Seat Belt Components

	Remove/install
	The spring in the inertia reel can pose an injury hazard  when the tension is released and it uncoils.	Never disassemble inertia reels	AS91.00-Z-0002-01A
1.1	Disconnect connector from electrical line of seat belt buckle of the outer rear seat	Only with side airbag in the rear (left and right), code 293. Turn ignition key into position "0" in order to avoid fault codes.
2	Unhook rear seat cover on the back of the rear seat cushion
3	Carefully lift up rear seat cover and unscrew bolt from belt end fitting	Do not damage rear seat cover. Installation:  Align rear seat cushion and rear seat cover correctly.
			*BA91.40-P-1001-01D
		Torx bit set	Figure
4	Remove belt end fitting from rear seat
5	Detach paneling (1) of belt guide (2) from rear backrest	Lift up front paneling and remove
6	Unscrew mounting screws of belt guide and remove belt guide (2)
7	Fold rear backrest forwards	See Operating Instructions
8	Unhook rear backrest cover (3) on the back of the rear backrest
9	Unscrew bolts (5) of rear wall paneling (4)
10	Remove rear wall covering (4)	Pull at the upper corners of the rear wall paneling in order to remove body-bound rivets (10). Installation:  Replace body-bound rivets.
11	Unscrew bolt (6) from automatic belt retractor (7)		*BA91.40-P-1005-01D
		Torx bit set	Figure
12	Detach automatic belt retractor (7) and guide seat belt through the rear backrest cover of the rear backrest	Installation:  Pay attention to catch and correct installation position of the automatic belt retractor. Make sure seat belt is not twisted when installed.
13	Check seat belt for signs of damage
	Check seat belts for damage		AP91.40-P-9150GH
14	Install in the reverse order

Seat belts/emergency tensioning retractors

Number	Designation		Model 163 as of 09/99
BA91.40-P-1001-01D	Screw on belt end fitting	Nm	35
BA91.40-P-1005-01D	Screw rear seat belt retractor to 2/3 seat bench	Nm	40

Fig 2: Identifying Torx Bit Set (000 589 01 10 00)
