Removing and installing side air nozzle - AR68.10-P-1100GH

MODELS 163.113 /128 /136 /154 /157 /172 /174 /175

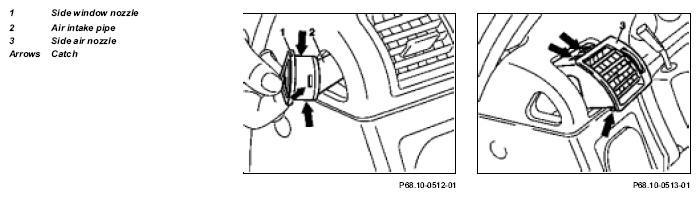

Fig 1: Identifying Side Air Nozzle Components

	Remove/install
1	Pry out side widow nozzle (1)
2	Remove side window nozzle (1) and intake pipe (2)	Remove intake pipe (2) from side air nozzle (3).
		Long wedge	Figure
3	Pry side air nozzle (3) downwards out of the catch (arrows)	Long wedge	Figure
4	Pry side air nozzle (3) upwards out of the catch (arrows)	Long wedge	Figure
5	Pull side air nozzle (3) out of the air duct
6	Install in the reverse order

Fig 2: Identifying Long Wedge (115 589 03 59 00)
