Removing and installing ashtray housing from front center console - AR68.20-P-2400GH

MODEL 163.113 /136 /154 /172 /174 up to 31.8.01

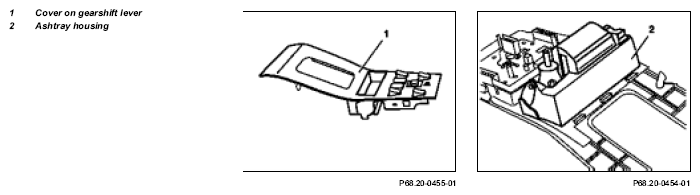

Fig 1: Identifying Cover On Gearshift Lever And Ashtray Housing
G04608263
REMOVINGINSTALLING Remove/install
1 Remove cover on gearshift lever (1)   AR68.20-P-2310GH
2 Remove ashtray housing (2) toward rear IMPORTANTInstallation:  Slide ashtray housing into mount and catch.
3 Install in the reverse order
