Remove/install stowage compartment or beverage holder - AR68.10-P-1600GH

MODEL 163.113 /128 /136 /154 /157 /172 /174 /175 driver's side

Instrument panel is illustrated disassembled for clarity.

Vehicles up to VIN A145272, X708318

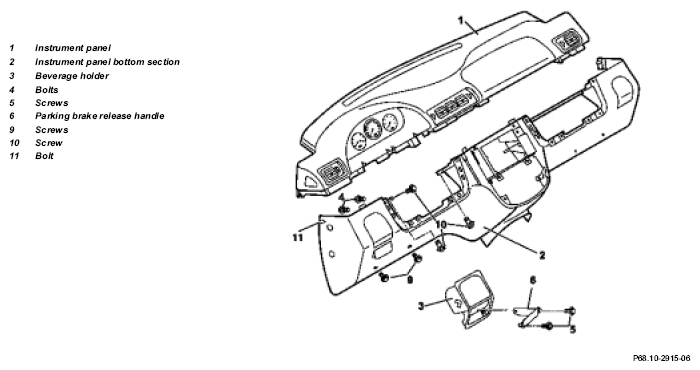

Fig 1: Identifying Stowage Compartment Components (Driver's Side Vehicles Up To VIN A145272, X708318)

Instrument panel is illustrated disassembled for clarity

Vehicles as of VIN A145273, X708319

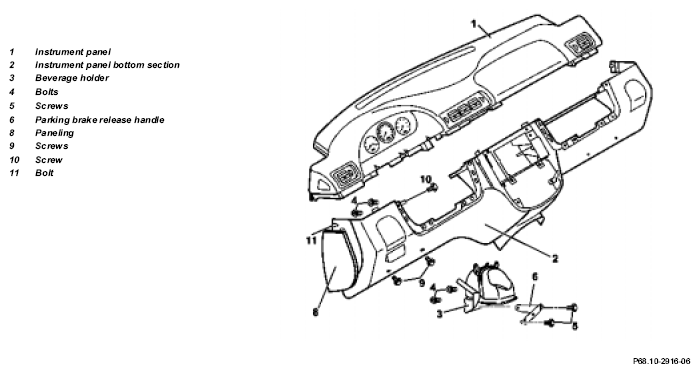

Fig 2: Identifying Stowage Compartment (Driver's Side Vehicles As Of VIN A145273, X708319)

	Remove/install
1	Remove left and right cover below instrument cluster	Risk of breakage!
2	Unscrew bolt (10)	Up to VIN A145272, X708318: 3 screws. As of VIN A145273, X708319: 1 screw.
3	Unscrew screws (9) from bottom side of instrument panel
4.1	Remove entry lamp from bottom of instrument panel	Only as of VIN A145273, X708319.
5.1	Remove paneling (8)	Only as of VIN A145273, X708319.
6	Unscrew screw (11) from left side of instrument panel
7	Loosen instrument panel bottom (2) at side on instrument panel (1) and pull downward	Carefully pull downward to prevent damaging instrument.
8	Unscrew screws (4) from beverage holder (3) at inside of instrument panel bottom section (2)
9	Unscrew screws (5) at outside of instrument panel bottom section (2)	At parking brake release handle (6).
10	Remove beverage holder (3)
11	Install in the reverse order
