Modify roof paneling for installing handle and clamping strap mount - AN68.30-P-0001-02B

Model 163.113 /154 #A as of 289565, Model 163.113 #X as of 754620, Model 163.128/ 157/ 175 with code (847), 3rd seat row

1. Remove accessory hook.
2. Position template (1) to roof paneling.

   Fasten template with adhesive tape.

3. Mark points which must be cut out for installing pivot handle and clamping strap.
4. Remove template (1).

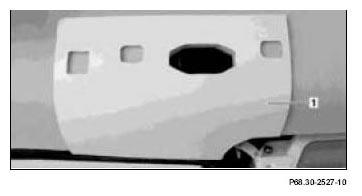

   Fig 1: Identifying Pivot Handle Template


5. Cut out cutouts for pivot handle and clamping strap mount.

   Do not cut into window airbag or wiring harness.

6. Repeat on opposite side.

1. 6 Install accessory hook (2), clamping strap mount (3) and handle (4).
2. 7 Repeat on opposite side.

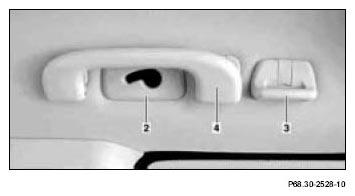

   Fig 2: Identifying Accessory Hook, Clamping Strap Mount And Handle
