Front ashtray does not open softly or is stuck - AF68.20-P-6000A

MODEL 163.113 /128 /154 /157 /174 /175 #A as of 289560 up to 480543,163.113 /128 #X as of 754620 up to 777100

Operation no. of operation texts or standard texts and flat rates

Category	Op. no.	Operation text	Time	Acc. no.	Code
P	024513	Replace Damper for front ashtray	010 WU	-	-

Damage code	Cause	Remedy
81 031 H2	Foreign matter stuck in ashtray housing. Damper is missing or is damaged.	1 Remove front ashtray housing (1).	AR68.20-P-2400GI
		2 Remove foreign matter.
		3 Check operation (open and close ashtray) If ashtray does not open softly or opens jerkily. ↓
		4 Remove/install/replace damper on ashtray (2).
		5 Install ashtray housing (1).	AR68.20-P-2400GI
		6 Perform a function test

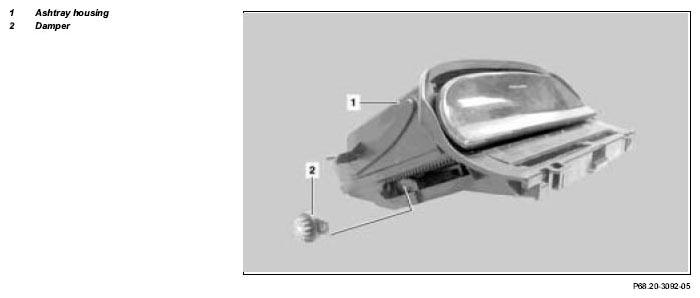

Fig 1: Identifying Ashtray Housing And Damper

Parts ordering notes

Part no.	Designation	Quantity
163 680 03 26	Damper	1
