Ashtray housing cannot be opened - AF68.20-P-6003A

MODEL 163.113 /154 /174 #A as of 289565, 163.128 /157 /175

Operation no. of the operation texts or standard texts and flat rates

Range	Op. no.	Operation text	Flat rate	Acc. no.	Code
P	023919	Correct installation position of cigarette lighter	001 WU/0.1 h	82 331 **	---

Damage code	Cause	Remedy
	Cigarette lighter not fully seated, causing ashtray housing to jam when closed.	It is NOT necessary to replace the complete ashtray housing. 1 Using a long wedge, slide under edge of ashtray cover and pry up and out to remove. Support cover to prevent breaking tabs from abrupt release. Start from lower left corner (arrow).	Fig 2
		2 Push inward on head of cigarette lighter until lighter snaps into proper position.
		3 Reinstall front ashtray cover.
		4 Verify proper operation.

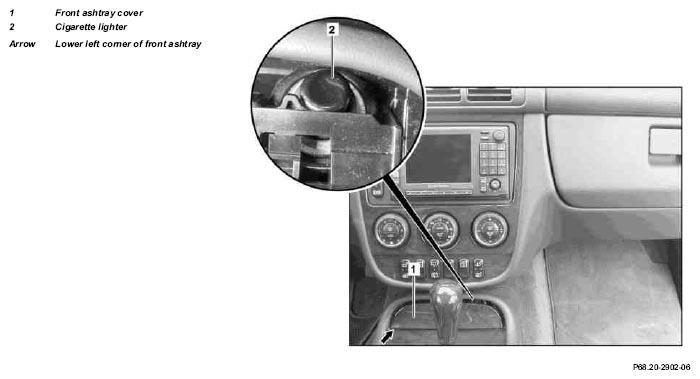

Fig 1: Identifying Front Ashtray Cover & Cigarette Lighter

Fig 2: Identifying Long Wedge (115 589 03 59 00)
