Removing and installing center air nozzle - AR68.10-P-1150GH

MODEL 163.113 /128 /136 /154 /157 /172 /174 /175

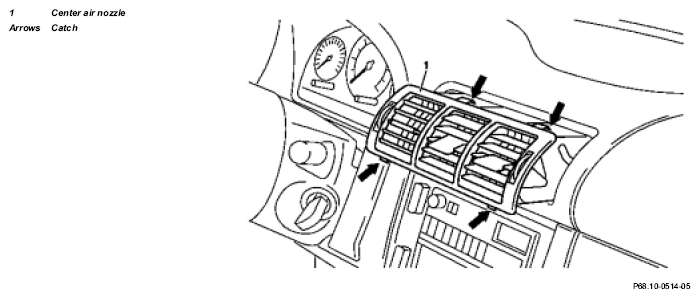

Fig 1: Identifying Center Air Nozzle

	Remove/install
1	Pry center air nozzle (1) at bottom out of catch (arrows)	Installation:  air nozzle should catch audibly.
		Long wedge	Figure
2	Pry center air nozzle (1) at top out of catch (arrows)	Installation:  air nozzle should catch audibly.
		Long wedge	Figure
3	Pull center air nozzle (1) out of air duct
4	Install in the reverse order

Fig 2: Identifying Long Wedge (115 589 03 59 00)
