Remove/install rear door lock - AR72.20-P-2550GH
MODEL 163

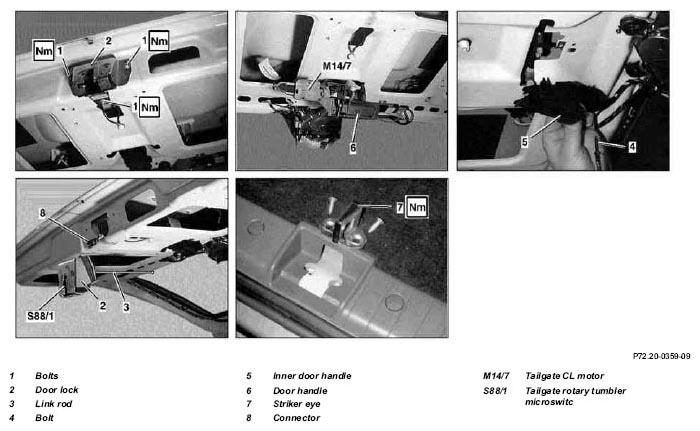

| Remove/Install | |||
|---|---|---|---|
| 1 | Remove liner on rear door | AR72.20-P-3520GH | |
| 2 | Remove bolts (1) from door lock (2) | *BA72.20-P-1002-02C | |
| 3 | Unhook link rod (3) | ||
| 4.1 | Disconnect connector (8) from tailgate rotary tumbler microswitch (S88/1) | ||
| 5 | Remove door lock (2) | ||
| 6 | Remove striker eye (7) | ||
| *BA72.20-P-1002-02C | |||
| 7 | Install in the reverse order | AR60.00-P-0700-01GH *BE60.00-P-1003-01D |
Test and adjustment values, gap dimensions at hoods, doors and covers
| Number | Designation | Model 163 | |||
|---|---|---|---|---|---|
| BE60.00-P-1003-01D | Gap dimension | cable duct | Dimension "E" | mm | 9.5 ± (0.5) |
| Rear door to D-pillar | Dimension "F" | mm | 5.0 ± (0.5) | ||
| Rear door to D-pillar | Dimension "G" | mm | 5.0 ± (0.5) | ||
| Rear door to rear fender | Dimension "M" | mm | 5.0 ± (0.5) | ||
| Fig., see | AR60.00-P-0700-01GH | ||||
| Number | Designation | Model 163 | |
|---|---|---|---|
| BA72.20-P-1001-02C | Bolt to striker eye | Nm | 30 |
| BA72.20-P-1002-02C | Bolt to door lock | Nm | 10 |
