Remove/install lock for exterior spare wheel mount - AR88.30-P-1001GH
MODEL 163.113 /128 /136 /154 /157 /172 /175 with CODE (849) Spare wheel mount/spare wheel
| Removing and installing | |||
|---|---|---|---|
| 1 | Remove release handle for spare wheel mount/ spare wheel | AR88.30-P-1001-01GH | |

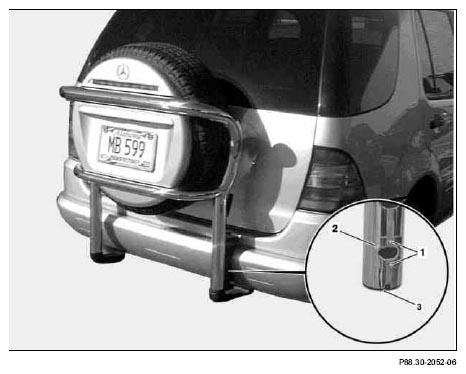

| 2 | Remove rivets (1) from lower lock (2) | ||
| 3 | Remove lower lock (2) | ||
| 4 | Pull locking mechanism (3) at bottom out of spare wheel mount/spare wheel | ||
| 5 | Install in the reverse order |
