Gap dimensions on attached parts - AR88.00-P-1100-01GH
Test and adjustment values, gap dimensions at hoods, doors and covers
| Number |
Designation |
Model 163 |
| BE60.00-P-1005-01D |
Gap dimension |

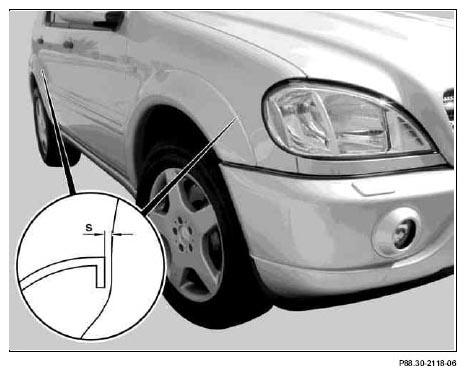

Front/rear fender to add-on part |
Dimension "S" |
mm |
0.6 (+0.2) |

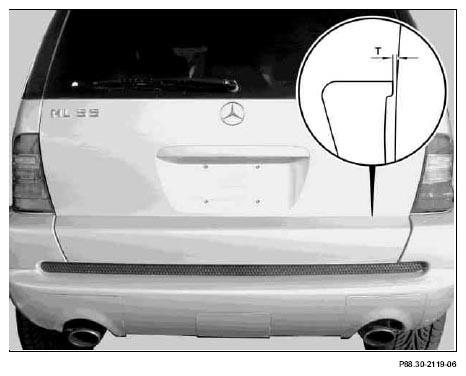

| Tailgate to tailgate add-on part |
Dimension "T" |
mm |
0.6 (+0.2) |
| |
Fig., see |
|
- |
Adjust gap dimension (S) between attached part and front fender, rear fender as well as gap dimension (T) between attached part and tailgate as shown in drawings. After adjusting, check gap dimension with
feeler gage. If gap dimension is too high or too low, increase or reduce the tension of the adhesive tape applied as an assembly aid. The guide values apply only for replacement of attached parts.
