Remove/install front door speakers in mirror triangle - AR82.62-P-7850GH
MODELS 163.113 #A as of 289565, 163.113 #X as of 754620, 163.154 /174 #A as of 289565, 163.128/157/175
| Remove/install | |||
|---|---|---|---|

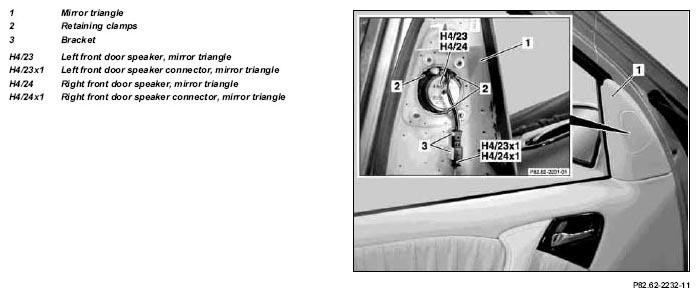

| 1 | Unclip mirror triangle (1) from door | Fig 2 | |
| 2 | Disconnect left front door speaker connector, mirror triangle (H4/23x1) or right front door speaker connector, mirror triangle (H4/24x1) from left front door speaker, mirror triangle (H4/23) or right front door speaker, mirror triangle (H4/24) | ||
| 3 | Remove retaining clips (2) | ||
| 4 | Remove speaker from mirror triangle | ||
| 5 | Install in the reverse order |
