Install rack-and-pinion steering to front axle carrier - AR46.20-P-0600-03GH
| Number | Designation | Model 163 up to VIN A289559, X754619 | Model 163 as of VIN A289560, X754620 | |
|---|---|---|---|---|
| BA46.20-P-1003-01D | Bolted connection, rack-and-pinion steering to front axle carrier | Nm | 50 | 50 |
Observe the installation position of the U-washers (right side only) (23h, 23i) and bolt (23a). The U-washers have different thicknesses, therefore they must not be mixed up.

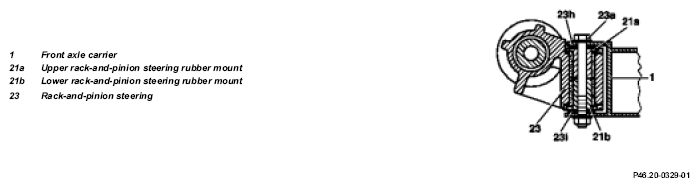

Right side
Observe installed position of bolt (23a).

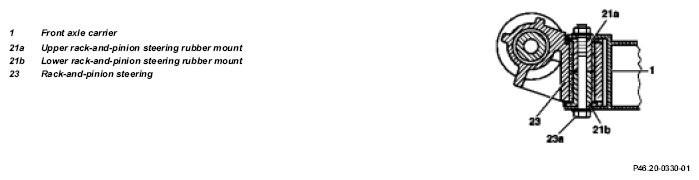

Left side
